What Is Structural Blockwork?

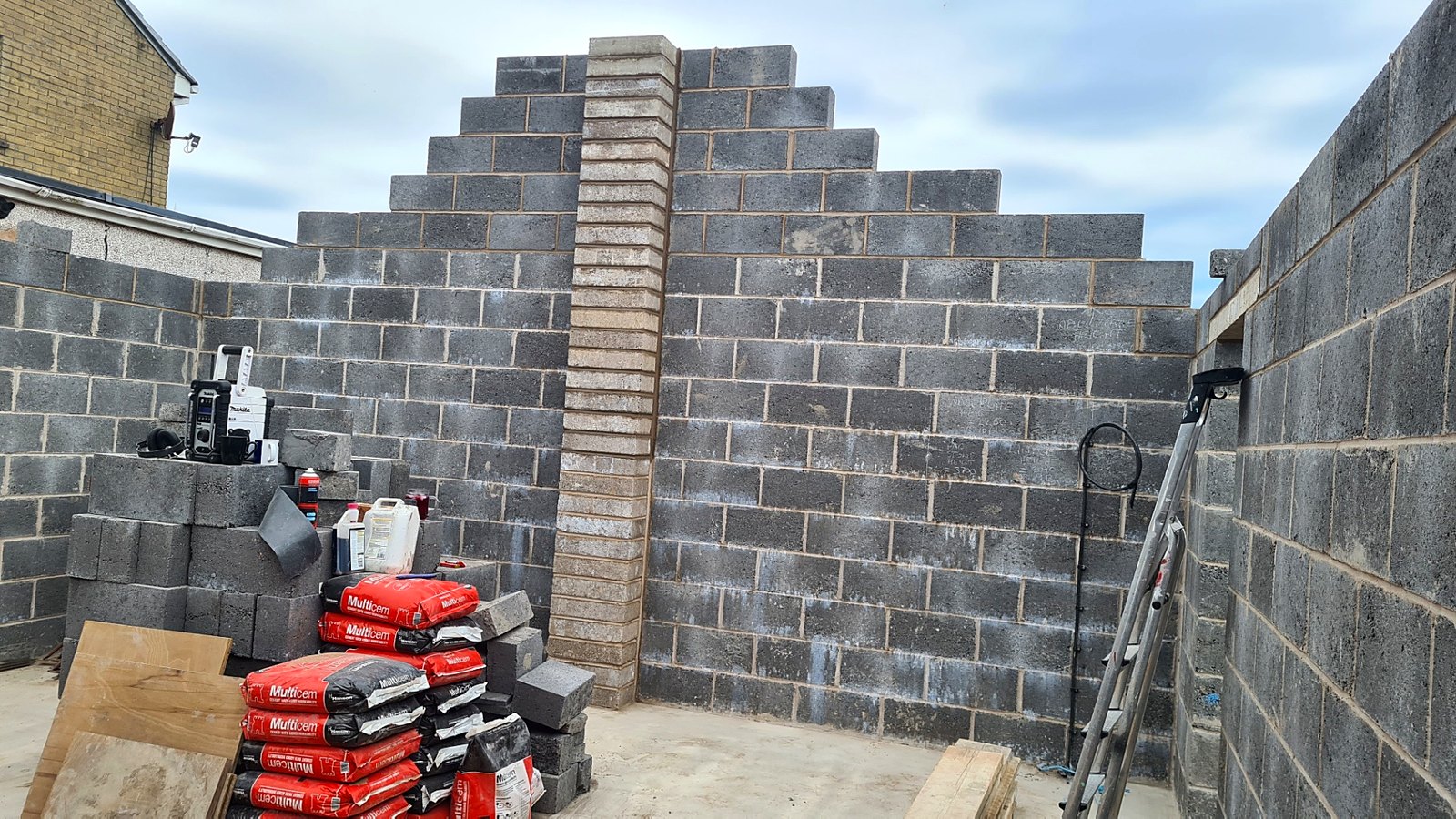

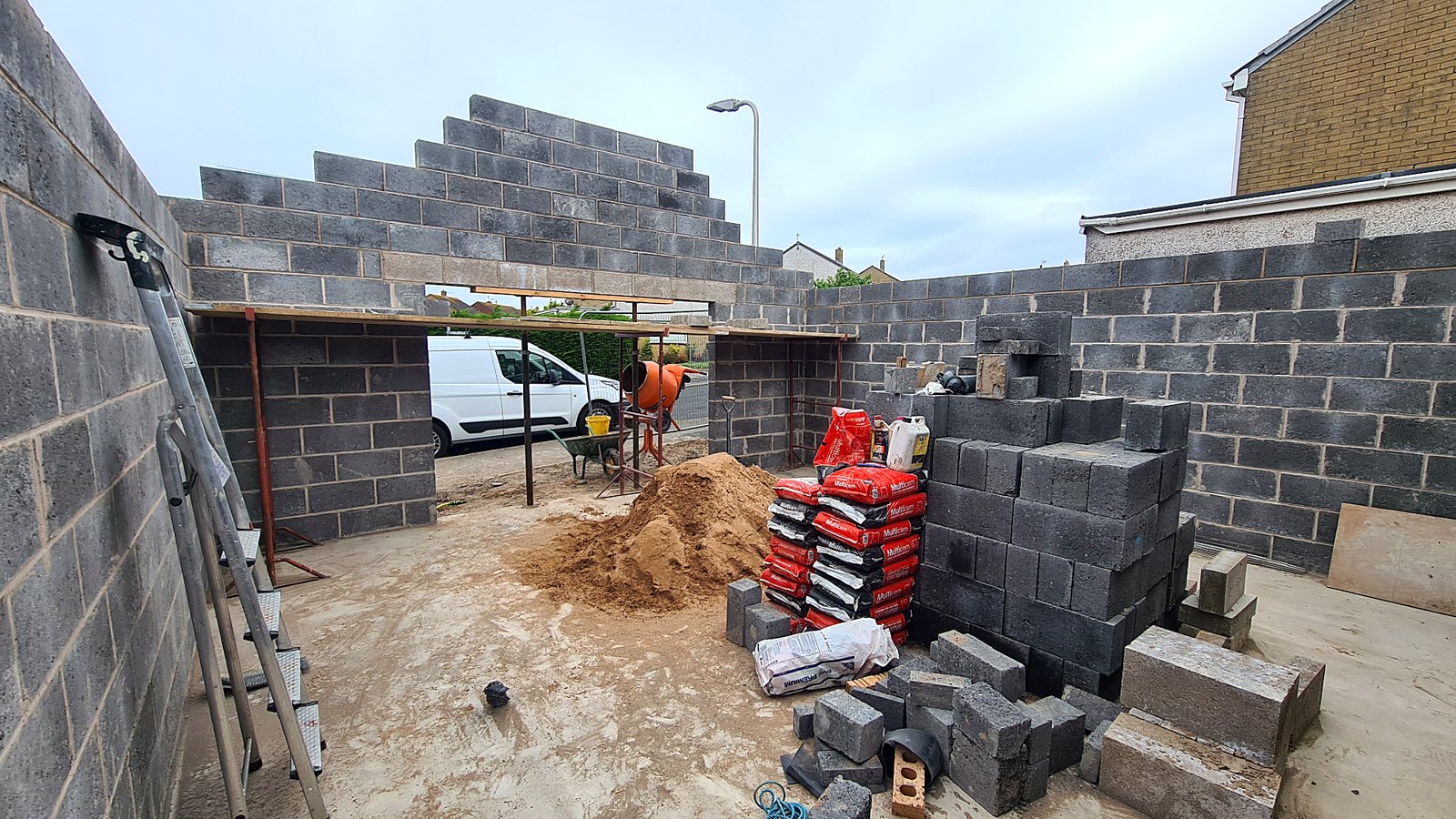

Structural blockwork is masonry that is designed and specified to carry vertical and lateral load, as distinct from blockwork used purely as a non-loadbearing partition or infill. Typical structural applications include the inner leaf of a cavity wall, internal loadbearing walls, foundation and substructure walls, and piers supporting beams above.

The distinction matters because a structural block wall has to be designed — block strength, thickness, mortar type and any reinforcement — against the actual loads it will carry, not simply built to a standard specification because 'that's what's normally used'.

Blockwork sits at the interface between the foundation and everything built above it. If it is out of level, out of plumb, or the wrong strength for the loads it will eventually carry, the consequences are inherited by the floor structure, the roof, the openings, and every finishing trade that follows — often invisibly until something visible fails much later.

Blocks are manufactured and classified by compressive strength, and the correct strength for a given wall is determined by the loads it needs to carry — a lightly loaded internal partition and a wall carrying substantial floor and roof loads are not interchangeable specifications.

Mortar is similarly classified by designation, reflecting its strength and durability characteristics, and the appropriate designation depends on the wall's exposure and structural role. Substituting a weaker mortar than specified, even if it looks the same on the wall, undermines the engineered performance of the whole assembly.

Blocks are laid in a bonded pattern so that vertical joints in one course do not line up with vertical joints in the course below, spreading load across the wall rather than concentrating it along weak lines.

Wall ties connect the inner and outer leaves of a cavity wall, and their type, spacing and the fall (tilt) they are installed at all matter — ties installed the wrong way round can actually direct water across the cavity rather than stopping it. Bed joint reinforcement is used where specified, typically around openings or along long unrestrained runs, to control cracking and add tensile capacity the block and mortar alone do not provide.

Insulation needs to be fitted tight against the inner leaf and continuous, without gaps that create cold bridges or paths for moisture. Cavity trays are installed wherever the cavity is bridged — above openings, at abutments — with weep holes above them to let any water that does cross the cavity escape rather than tracking along to the inner leaf.

Damp proof courses need to be correctly positioned and lapped at every junction, and the cavity itself kept genuinely clear of mortar droppings during construction, since debris bridging the cavity is one of the most common causes of damp reaching the inner leaf years later.

It is used wherever masonry needs to carry real structural load — inner leaves of cavity walls, internal loadbearing walls, substructure and foundation walls, and piers. It is not generally the right choice where a wall needs to be non-loadbearing and lightweight, such as many internal stud partitions, or where a design specifically calls for a different structural system such as timber frame or structural steel framing with infill panels.

Blockwork is normally built from the foundation up to damp proof course level first, inspected, and then continued up through the ground floor structure and beyond. It has to interface correctly with the drainage and services passing through or under it, with the floor structure bearing on it, with any structural steel bearing points (padstones sit within or on top of the blockwork), and with the roof structure ultimately bearing on the completed walls.

Openings for windows and doors need lintels correctly specified and bearing onto sound blockwork either side, and any movement joints specified by the engineer need to be built in at the right locations, not added as an afterthought.

The recurring issues on blockwork are: inconsistent gauge (course height) leading to problems lining up with window and door openings, wall ties installed the wrong way round or at the wrong spacing, mortar droppings left in the cavity, DPCs not lapped correctly at junctions, and walls that drift out of plumb or level gradually enough that it is not obvious until later courses or the following trade struggle to sit correctly.

Any wall carrying significant vertical load, spanning an opening, forming part of the primary structure, or where ground conditions or unusual loading are involved should have its blockwork specification (block strength, mortar designation, any reinforcement) confirmed by a structural engineer rather than assumed from general practice.

Blocks are broadly grouped by density, and the group affects far more than weight on site. Dense aggregate blocks give the highest compressive strength and are common where load or exposure is greatest, such as below ground and up to DPC. Medium-dense blocks are a common general-purpose choice for the inner leaf above DPC, balancing strength, thermal performance and workability. Lightweight (aircrete) blocks give better thermal performance for a given thickness but at lower compressive strength, so their structural role has to be checked against the loads involved rather than assumed acceptable everywhere dense block would previously have gone.

Mixing block types through a wall — dense below DPC, lightweight above — is normal and often specified deliberately, but the transition and any change in wall tie or fixing type at that junction needs to be detailed correctly, not left to whoever is laying the blocks that day to decide.

Blockwork cost is driven by more than the price of the blocks themselves. Wall area and thickness set the basic material quantity, but block strength and type, mortar designation, the amount of reinforcement and movement joint detailing specified by the engineer, and the number of openings, piers and junctions to work around all add labour time that a simple area calculation does not capture.

Access also matters more than it might seem: blockwork delivered and handled easily on a flat, accessible site is a different pricing proposition from the same wall built where blocks have to be barrowed or craned to a restricted position.

For a client, the practical takeaway is that blockwork accuracy is one of the genuinely load-bearing decisions in a build, in every sense — both structurally and in terms of cost. Asking whether block strength and mortar designation have been specified by an engineer, and confirming that Building Control has inspected the blockwork at the appropriate stages, are reasonable and useful questions to ask.
